Criditpid PBAR-2427 Fireplace Blower Fan with Thermostat for Pleasant Hearth Vent Free Stove or Wood Burning Stoves, Speed Variable Blower for GHP Group VFS2-PH30DT, VFS2-PH20DT, VFS-PH20DT Fireplace.
Product details
| Management number | 227488537 | Release Date | 2026/05/09 | List Price | $23.59 | Model Number | 227488537 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Compatibility:➤ Designed and certified to only operate with Pleasant Hearth vent free stoves or wood burning stoves.GHP Group Vent Free Stoves Only: VFS-PH20DT, VFS-PH30DT, VFS2-PH20DT, VFS2-PH30DT, VFS2-L20DT, VFS2-L30DT. Wood Burning Stoves Model: WS-2417, WS-2720, WS3029, HWS-224172MH, LWS-127201 and LWS-13091. ➤ Replacement for Part Number: PBAR-2427Specifications:★ Dimesions: 9.75‘’L x 3.62''W x 5.25''H★ Power Cord Length: 71"★ Amp: 1 A★ Volts: 110 to 120 VAC at 60 Cycle★ Operation: Variable speed control★ Speed: 3200 RPMFor installation with Pleasant Hearth Wood Stove The blower is to be installed at the rear of the stove,on the rear heat shield. Align the blower and gasket mounting holes with those on the rear heat shield.IMPORTANT:Ensure the blower and gasket are oriented correctly. The blower wheel and gasket cut-ot must align with the cut-out in the rear heat shield. Fasten the blower and gasket to the rear heat shield using the four (4) screws provided.DO NOT over tighten screws. Be sure toplug the blower into a 3 prong gounded outlet. DO NOT tamper with the grounding prong on the cord.
- ➤ Compatibility -The Wood Stove Blower Fan is compatible with GHP Group Vent Free Stoves Only: VFS-PH20DT, VFS-PH30DT, VFS2-PH20DT, VFS2-PH30DT, VFS2-L20DT, VFS2-L30DT. The blower is compatible with all of the wood-burning stoves and pellet stoves that bear the brand name. ➤ Replacement PBAR-2427 variable speed blower kit is for use with Pleasant Hearth Wood Burning Stoves Model #WS-2417, WS-2720, WS3029, HWS-224172MH, LWS-127201 and LWS-13091.

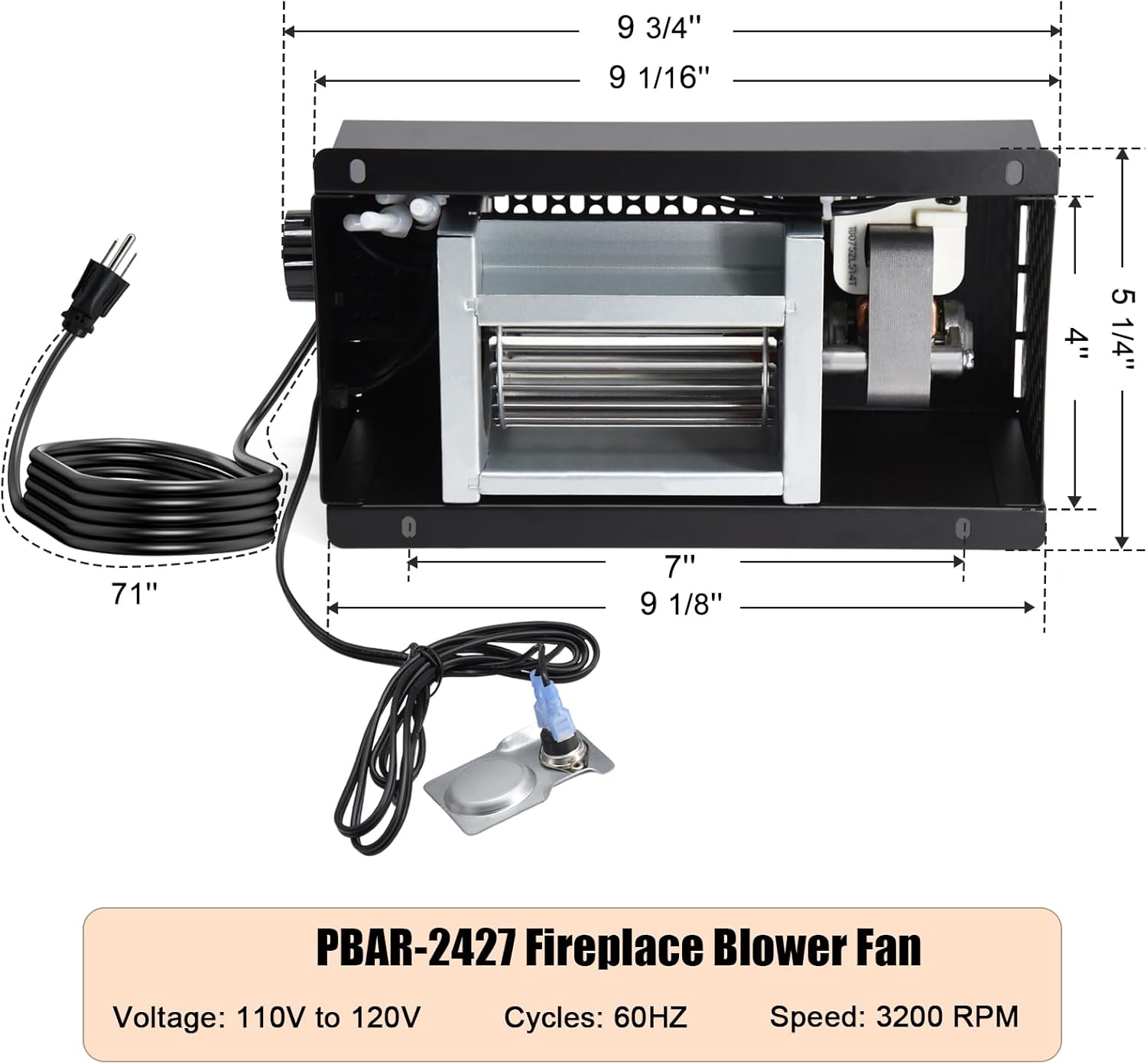

- ➤ The Stove Blower Kit PBAR-2427 Technical Specifications - Overall Pleasant Hearth Stove Blower Length with Guard Dimension: 9.75”x 3.62'' x 5.25''. Blower with 71" Power Cord, Volts: 110V to 120V, 3,200 RPM. Manual Variable Speed switch and Magnetic Thermostat. You can use pre-drilled holes to mount to the back of the cooker to improve heat circulation.
- Automatic Thermostat & Adjustable Speed: Added a magnetic thermostat switch to the pleasant hearth pbar-2427 fan, which enables automatic control of the on/off function of the fireplace blower. This temperature switch activate at approximately 120°F and shut off at approximately 90°F (+/- 5°F tolerance). Features an adjustable speed controller, You can fine tune the speed and blower noise level where you want it.
- ➤ Quickly Warm Your Home - The Pleasant Hearth Wood Stove Blower fan can improve heat circulation by up to 75%. Wood stove blower fan helps improve whole room heating, reducing the time required to heat the room and saving energy. Adopt a pure copper motors and ultra quiet bearings, the pleasant hearth vent free fireplace blower kit runs smoothly with low vibration.
- ➤PBAR-2427 Blower Kit - Fireplace Blower Fan kit include replacement blower fan, thermostat, power cord, gasket, screws and installation instructions, 1-year warran/ty. The unit comes with all of the hardware necessary to get the job done and with easy-to-follow instructions.
| ASIN | B0FHP2J3JF |
|---|---|
| Size | PBAR-2427 Blower (With Thermostat) |
| Color | Black |
| Speed | 3200 RPM |
| Style | Compact |
| Wattage | 25 watts |
| Material | Metal |
| Room Type | Home Office |
| Brand Name | Criditpid |
| Model Name | PBAR-2427 Blower Fan Kit |
| Motor Type | brushed |
| Unit Count | 1.0 Count |
| Noise Level | 45 Decibels |
| Manufacturer | Criditpid |
| Model Number | PBAR 2427 |
| Power Source | Corded Electric |
| Mounting Type | Vent Free Stove Mount |
| Control Method | Push Button, Touch |
| Collection Name | Stove Fans |
| Special Features | Speed Variable |
| Installation Type | Stove Mount |
| Electric Fan Design | Blower |
| Included Components | Blower Fan, Thermostat, Power Cord, Gasket, Instructions |
| Is Product Cordless | No |
| Indoor Outdoor Usage | Indoor |
| Standby Power Shutoff | High Efficiency |
| Number of Power Levels | 3 |
| Item Dimensions D x W x H | 15"D x 3"W x 6"H |
| Recommended Uses For Product | Air Circulation |
